About Microller
Microller is compatible with any Android device for controlling your micro-controller card (Ex. Arduino) through a Bluetooth connection. It sends a byte associated with each button when it is pressed in the application...
Microller is compatible with any Android device for controlling your micro-controller card (Ex. Arduino) through a Bluetooth connection. It sends a byte associated with each button when it is pressed in the application interface.
In order to receive the data, send a request message (one byte with value 100) and you will receive a "Microller Message" with the following 16 bytes,which will show the state of each button.
//MICROLLER MESSAGE REQUEST//
byte REQUEST = 100;
//MICROLLER MESSAGE//
MicrollerMessage[0]
STATE OF UP BUTTON // PRESSED(3) OR RELEASE(253)
MicrollerMessage[1]
STATE OF RIGHT BUTTON // PRESSED(5) OR RELEASE(251)
MicrollerMessage[2]
STATE OF DOWN BUTTON // PRESSED(7) OR RELEASE(249)
MicrollerMessage[3]
STATE OF LEFT BUTTON // PRESSED(9) OR RELEASE(247)
MicrollerMessage[4]
STATE OF Y BUTTON // PRESSED(121) OR RELEASE(89)
MicrollerMessage[5]
STATE OF B BUTTON // PRESSED(98) OR RELEASE(66)
MicrollerMessage[6]
STATE OF A BUTTON // PRESSED(97) OR RELEASE(65)
MicrollerMessage[7]
STATE OF X BUTTON // PRESSED(120) OR RELEASE(88)
MicrollerMessage[8]
STATE OF L1 BUTTON // PRESSED(108) OR RELEASE(76)
MicrollerMessage[9]
STATE OF L2 BUTTON // PRESSED(109) OR RELEASE(77)
MicrollerMessage[10]
STATE OF L3 BUTTON // PRESSED(111) OR RELEASE(79)
MicrollerMessage[11]
STATE OF R1 BUTTON // PRESSED(114) OR RELEASE(82)
MicrollerMessage[12]
STATE OF R2 BUTTON // PRESSED(110) OR RELEASE(78)
MicrollerMessage[13]
STATE OF R3 BUTTON // PRESSED(112) OR RELEASE(80)
MicrollerMessage[14]
STATE OF JOYSTICK LEFT BUTTON // RELEASE(129) OR VALUES BETWEEN (246-207)
MicrollerMessage[15]
STATE OF JOYSTICK RIGHT BUTTON // RELEASE(128) OR VALUES BETWEEN (206-167)

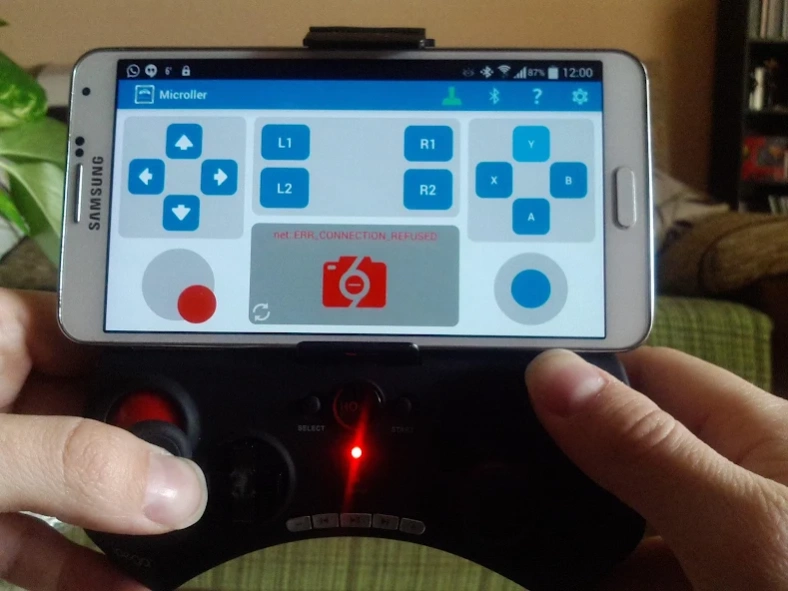

The main advantages of this control compared to the others is that its behavior is completely customizable and you can use a physical game-pad for Android (Ex. IPEGA) and IP cameras.
Your options are:
- Display of IP camera streaming providing its IP address.
- Compatibility with physical game-pads. (Tested with game-pad IPEGA).
- Send to your email address or download to your device a sample code to handle the signals sent by the controller (Sample written in Arduino
- Layout configurable.
- Help menu available.
Previous Versions
Here you can find the changelog of Microller since it was posted on our website on 2016-12-26 05:19:40.
The latest version is 1.1.4 and it was updated on 2024-04-22 12:41:53. See below the changes in each version.
Microller version 1.1.4
Updated At: 2015-10-19
Changes: Fixed bugs:,- Error to send mail with Sample Arduino code.,Added option to download Sample Arduino code in your own device.,This version uses a new protocol to receive data through a "Microller Message" you can see in the description.
